Construction equipment depends on hidden muscle in the form of lifting, pushing, or pulling heavy weights. The power behind this process is contained in the hydraulic cylinder types available on the market. Such a piece of equipment is a vital tool used in various industries, starting from construction to production. Although all the components have the same purpose, the variations make a big difference in the operation and application of the equipment. Such knowledge can help you pick the right equipment for the assigned task.
Understanding the Basics
A hydraulic cylinder is a kind of mechanical actuator. It is a device that can provide unidirectional force using a unidirectional stroke. A hydraulic cylinder acts by using fluid pressure to move a piston along the inside of a cylindrical body. This highly effective but simple device can be used to lift heavy objects and move heavy parts with precision. Though the basic principle stays the same everywhere, there are designs developed to handle particular situations related to space and pressure. For durability and reliability, you may also consider a regular hydraulic testing service from Coastal Hydraulics to ensure optimal performance.

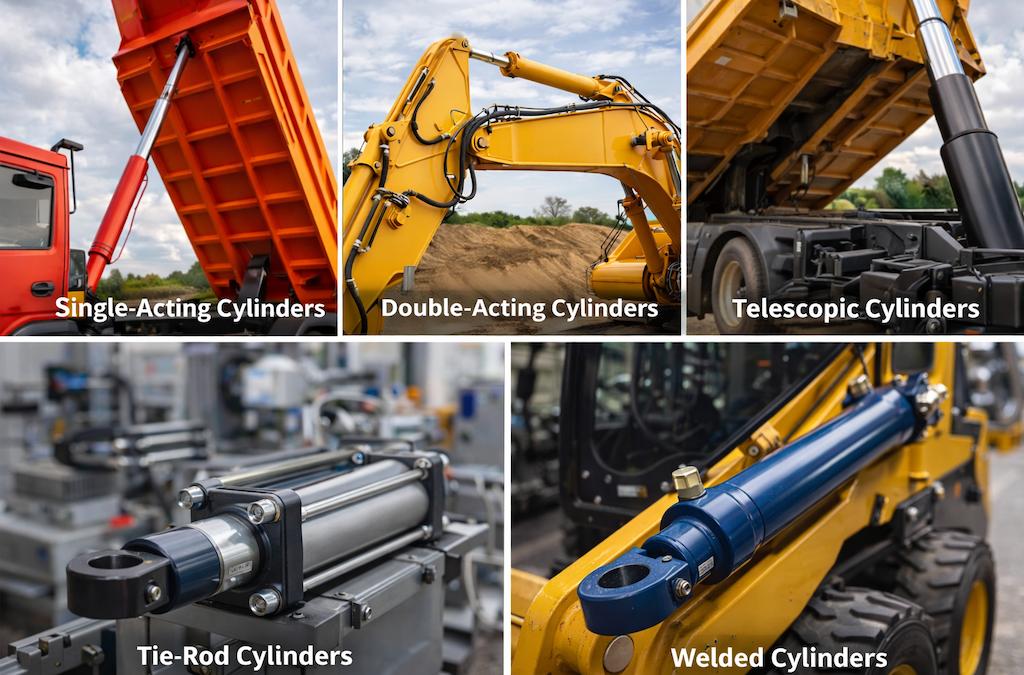

Common Types of Cylinders
There are different cylinder types, with each one being made for a particular use.
Single-Acting Cylinders
Single-acting cylinders are the most basic type of hydraulic actuators. They support the actuation process in only one way. The hydraulic fluid pushes the piston inside the barrel to move the actuated object, but a separate force, like the force of gravity or a spring, is needed to return the piston. You can observe the functionality of a single-acting cylinder in a jack or lifting system, wherein the heavy load automatically presses the piston downwards.
Double-Acting Cylinders
The double-acting cylinder offers power for extension and retraction movement. In this type of cylinder, there are ports at both ends of the cylinder, and the hydraulic fluid pushes the piston from both sides. These cylinders are extremely popular in their usage in situations that demand movement in two directions, such as in drawers and steering cylinders, or even in the movement of the arm booms of the excavators.
Telescopic Cylinders
A telescopic cylinder would be used in applications that require a long stroke with a relatively short retracted length. This type of cylinder comprises a series of steel tubes that fit inside one another. These steel tubes extend similar to a telescope. Telescopic cylinders are mostly used in dump trucks and in construction vehicles where a particular distance of lifting reach is necessary.
Tie-Rod Cylinders
Tie-rod cylinders are distinguished by their high-strength steel rods that are threaded in order to retain the end caps on the barrel of the cylinder. Their design ensures that they can easily be disassembled for servicing. Tie-rod cylinders are quite common in factories due to these advantages, although they are less strong when it comes to the high pressures involved in hydraulic cylinders.
Welded Cylinders
In a welded cylinder, the end caps are fixed to the cylinder barrel through welding. The advantage of this type of cylinder is that it is more compact and stronger than a tie-rod cylinder. The fact that it does not use tie rods allows it to perform better under higher pressure without the fear of the rods breaking or stretching. Usually, welded cylinders are used in bulldozers and mining equipment because of their strength.
Selecting the Right Cylinder
Choosing the correct cylinder involves considering the needs of your particular application. First, it will be necessary to calculate the weight of the mass that will need to move in order to determine the required diameter of the cylinder. The required distance of travel determines the stroke. Another aspect, however, that plays an even more vital role, as in many considerations of product choice, is the environment in which the product will be used. Understanding the different types of hydraulic cylinders on the market will ensure you select the right fit for your application.
Powering Your Next Project
Hydraulic cylinders can be called unsung heroes of the industrial world. If you require the simple act of a single acting hydraulic cylinder or the highly sophisticated reach of a telescopic hydraulic cylinder, rest assured that a hydraulic cylinder with these specifications will suit your needs. A proper analysis of your load requirements and environmental factors will help identify the most efficient hydraulic cylinder suitable for your machinery!
